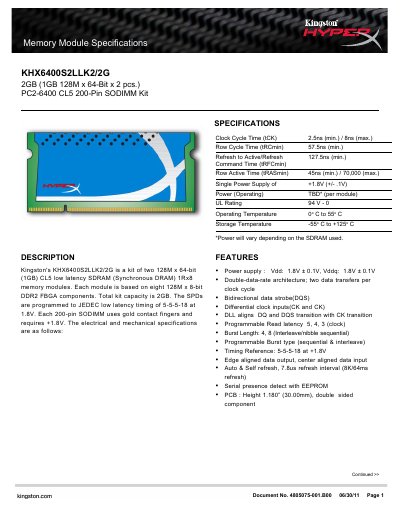

Specifications of Kingston KHX6400S2LLK2/2G 2GB 200-pin SODIMM memory module, including timing, voltage, power consumption and other information
The KHX6400S2LLK2/2G kit consists of two 1 GB DDR2 SODIMM modules, each built from eight 128M × 8‑bit FBGA components. The modules operate at 1.8 V and are programmed to JEDEC low‑latency timing 5‑5‑5‑18. They feature double‑data‑rate architecture, bidirectional data strobe, differential clock inputs, and programmable read latency and burst settings.
Technical specifications include a 2.5 ns minimum clock cycle time, 57.5 ns minimum row cycle time, operating temperature from 0 °C to 55 °C, and storage temperature from –55 °C to +125 °C. All Kingston products are tested to meet published specifications, and over‑clocking is not recommended.
| Total Capacity | 2 GB (2 × 1 GB modules) |
|---|---|
| Memory Type | DDR2 SODIMM, PC2‑6400, CL5 |
| Clock Cycle Time (tCK) | 2.5 ns min / 8 ns max |
| Row Cycle Time (tRCmin) | 57.5 ns min |
| Power Supply | +1.8 V ± 0.1 V |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -55 °C to +125 °C |
The kit provides a total of 2 GB, consisting of two 1 GB modules.
It operates from a single +1.8 V power supply (± 0.1 V).
The modules are programmed to the low‑latency timing 5‑5‑5‑18 at +1.8 V.
Kingston does not recommend over‑clocking; doing so may damage components.
