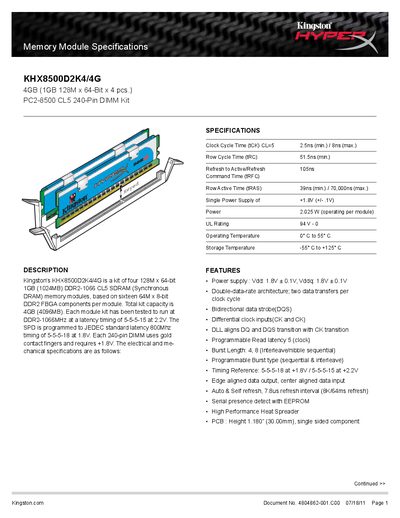

Kingston's KHX8500D2K4/4G is a kit of four 128M x 64-bit 1GB (1024MB) DDR2-1066 CL5 SDRAM (Synchronous DRAM) memory modules, based on sixteen 64M x 8-bit DDR2 FBGA components per module. Total kit capacity is 4GB (4096MB). Each module kit has been tested to run at DDR2-1066MHz at a latency timing of 5-5-5-15 at 2.2V. The SPD is programmed to JEDEC standard latency 800Mhz timing of 5-5-5-18 at 1.8V. Each 240-pin DIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:
This document provides the technical specifications and key features of Kingston's KHX8500D2K4/4G memory kit, which consists of four 1 GB DDR2‑1066 CL5 SDRAM modules. It includes electrical, mechanical, and performance data required for system designers and integrators.
The datasheet lists timing parameters, power consumption, temperature ranges, and physical dimensions, as well as recommended operating voltages and latency settings. It also notes compatibility considerations and the presence of a heat spreader for improved thermal performance.
| Total kit capacity | 4096 MB |
|---|---|
| Memory type | DDR2‑1066 CL5 SDRAM |
| Operating voltage | +1.8 V |
| Power consumption per module | 2.025 W |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -55 °C to +125 °C |
| Clock Cycle Time (tCK) | 2.5 ns min / 8 ns max |
| Row Cycle Time (tRC) | 51.5 ns min |
| Refresh to Active/Refresh | 105 ns |
| Row Active Time (tRAS) | 39 ns min / 70,000 ns max |
| Timing reference | 5‑5‑5‑18 at +1.8 V / 5‑5‑5‑15 at +2.2 V |
The kit provides a total capacity of 4 GB (4096 MB).
Each module operates at a single power supply of +1.8 V (±0.1 V).
The modules operate from 0 °C up to 55 °C.
Each module consumes about 2.025 W during operation.
