This is a 4GB 512M x 64-Bit DDR3-1600 CL9 240-Pin DIMM that supports low latency timing of 9-9-9 at 1.65V.

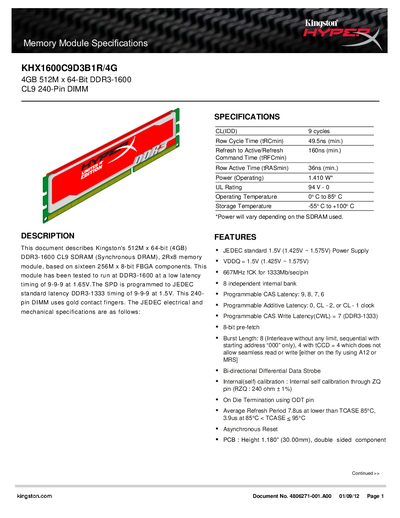

This document provides the technical specifications for Kingston's KHX1600C9D3B1R/4G 4 GB DDR3‑1600 memory module. It lists electrical parameters, timing values, power consumption, temperature ranges, and physical dimensions.
The sheet also includes programmable latency options and notes on module construction, such as gold contact fingers and on‑die termination. It references Kingston's website for further information and includes a document number for traceability.
| Capacity | 4 GB (512M × 64‑bit) |
|---|---|
| CAS Latency (CL) | 9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns (min.) |
| Row Active Time (tRASmin) | 36 ns (min.) |
| Operating Power | 1.410 W |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Module Height | 30.00 mm |
The module provides 4 GB of memory, organized as 512 M × 64‑bit.
It operates from 0 °C up to 85 °C.
The operating power is specified as 1.410 W.
