Start here

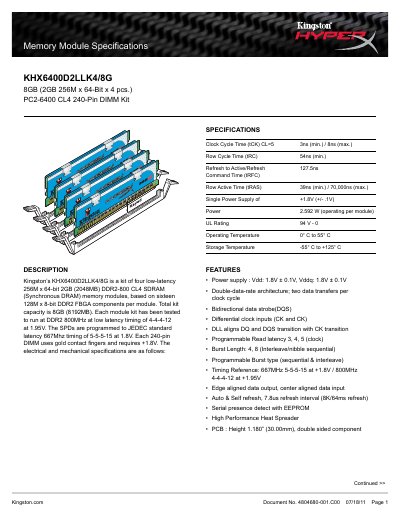

Kingston KHX6400D2LLK4/8G Memory Module Specifications
This document provides the specifications for Kingston's KHX6400D2LLK4/8G memory kit, which consists of four 2 GB DDR2‑800 CL4 modules for a total capacity of 8 GB. It lists electrical, mechanical, and timing parameters required for proper system integration.
Key features include a 240‑pin DIMM interface, 1.8 V power supply, low‑latency timings (4‑4‑4‑12 at 800 MHz) and detailed mechanical dimensions. The sheet also notes operating temperature ranges and power consumption per module. This manual is written in Chinese.
Kingston KHX8G specifications
| Clock Cycle Time (tCK) | 3 ns min / 8 ns max |
|---|---|
| Row Cycle Time (tRC) | 54 ns min |
| Power Consumption | 2.592 W per module (operating) |
| Operating Temperature | 0 °C to 55 °C |
| Single Power Supply | +1.8 V (±0.1 V) |
Source: Kingston KHX6400D2LLK4/8G Memory Module Specifications
All Kingston KHX8G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the KHX6400D2LLK4/8G kit?
The kit provides a total capacity of 8 GB (8192 MB).
From: Kingston KHX6400D2LLK4/8G Memory Module Specifications
What voltage does each memory module require?
Each module operates at +1.8 V (±0.1 V).
From: Kingston KHX6400D2LLK4/8G Memory Module Specifications
What is the total capacity of the Kingston KHX1333C9D3B1K2/8G kit?
The kit provides a total capacity of 8 GB, made up of two 4 GB modules.
From: Kingston KHX1333C9D3B1K2/8G DDR3 Memory Kit Product Specification
What voltage and timing specifications does the memory kit use?
It operates at a JEDEC standard voltage of 1.5 V and uses a timing of 9‑9‑9 (CAS latency 9).
From: Kingston KHX1333C9D3B1K2/8G DDR3 Memory Kit Product Specification
What is the total capacity of the Kingston KHX1600C9D3P1K2/8G kit?
The kit provides a total of 8 GB, consisting of two 4 GB modules.
From: Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
What voltage does the memory module require?
It operates at 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
