KVR1066D3S8N7/2G 2GB 1Rx8 256M x 64-Bit PC3-8500 CL7 240-Pin DIMM is a DDR3-1066 CL7 SDRAM (Synchronous DRAM) from ValueRAM, a 1Rx8 memory module based on eight 256M x 8-bit DDR3-1066 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1066 timing 7-7-7 at 1.5V. This 240-pin DIMM uses gold contact fingers.

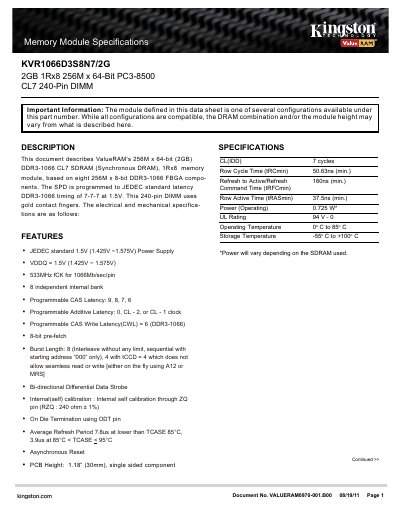

This datasheet provides the electrical, mechanical and timing specifications for the ValueRAM KVR1066D3S8N7/2G DDR3 memory module. It describes the module’s configuration, JEDEC‑compliant parameters and key features such as programmable latencies and on‑die termination.
Key specifications include a 2 GB capacity, 1.5 V operating voltage, 533 MHz fCK (1066 MT/s) data rate, 240‑pin DIMM form factor, and programmable CAS latency values of 9, 8, 7, 6. Mechanical details such as a 1.18 in (30 mm) PCB height are also listed.
| Capacity | 2 GB |
|---|---|
| Form factor | 240‑pin DIMM |
| Operating voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Data rate | 533 MHz fCK (1066 MT/s) |
| Programmable CAS latency | 9, 8, 7, 6 |
| Operating power | 0.725 W |
| PCB height | 1.18 in (30 mm) |
The module provides 2 GB of memory.
It operates at a standard JEDEC voltage of 1.5 V.
The module uses a 240‑pin DIMM connector.
It runs at 533 MHz fCK, delivering 1066 MT/s.
