The TL-PWA2701N/TL-PWA2801N Powerline AP can use existing power lines for data transmission without additional wiring. Support plug and play, as long as there is a power outlet, you can expand the network connection with two adapters. TL-PWA2701N/TL-PWA2801N Powerline AP combines powerline communication and wireless AP functions, which can be used to expand wireless networks through power lines, making it an ideal choice for home, SME and hotel networks. TL-PWA2701N/TL-PWA2801N Powerline AP supports mainstream Homeplug AV standards, with a powerline transmission rate of up to 200Mbps and supports wireless standards IEEE 802.11n, with wireless transmission speeds of 150Mbps and 300Mbps respectively.

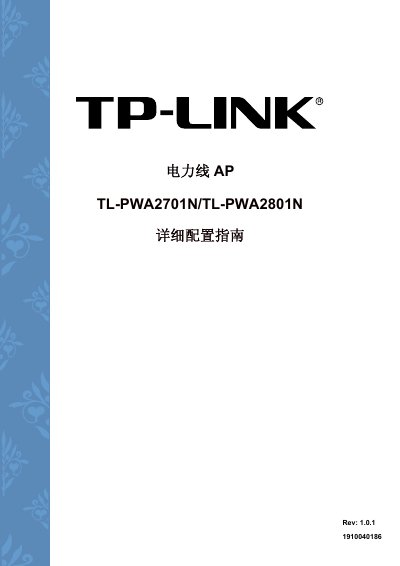

This manual provides a complete overview of the TP‑Link TL‑PWA2701N/TL‑PWA2801N Powerline AP, including product features, hardware description, and typical application scenarios. It explains how the device uses existing electrical wiring to extend both powerline and Wi‑Fi networks for homes or small offices.
Step‑by‑step instructions cover TCP/IP configuration, wireless settings, QSS fast setup, Pair button operations, and system tools such as firmware upgrade and factory reset. The appendix includes a FAQ section and a full list of product specifications. This manual is written in Chinese.
| Standards | HomePlug AV, IEEE 802.3, IEEE 802.3u, IEEE 802.11 b/g/n |
|---|---|
| Operating System Compatibility | Windows XP/Vista/7 |
| Ethernet Data Rate | 100 Mbps (half‑duplex), 200 Mbps (full‑duplex) |
| Powerline Transfer Rate | 200 Mbps |
| Wireless Transfer Rate | 150 Mbps / 300 Mbps |
| Transmission Range | 300 m (within same electrical meter) |
| Powerline Security | 128‑bit AES encryption |
| Wireless Security | WPA‑PSK/WPA2‑PSK, WPA/WPA2, WEP |
| RJ45 Port | 1 × 10/100 Mbps |
| Dimensions (L×W×H) | 105 mm × 58 mm × 40 mm |
| Operating Temperature | 0 °C ~ 42 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10 % ~ 90 % RH (non‑condensing) |
| Storage Humidity | 5 % ~ 90 % RH (non‑condensing) |
Check that the adapter is plugged into a power outlet, verify the outlet is functional, and if the indicator still does not light, contact the local dealer.
The default login IP is 192.168.1.254 and the default username and password are both admin.
Ensure the wireless function is enabled on the AP and that the computer’s SSID and encryption settings match those configured on the AP.
