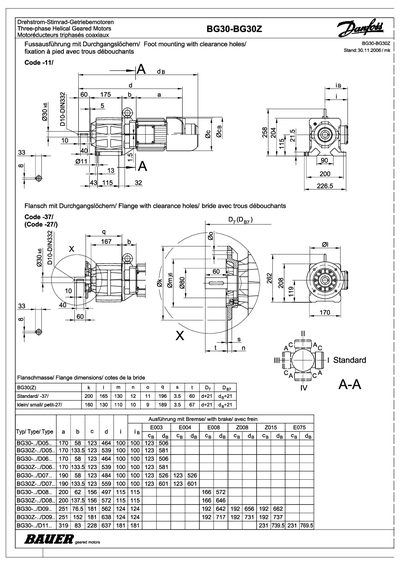

This document provides the technical specifications for Danfoss BG30 and BG30Z three‑phase helical geared motors. It lists standard and small flange dimensions, as well as options for clearance‑hole and tapped‑hole flanges.
The data sheet also describes brake configurations and includes detailed tables of motor dimensions and performance figures for various model variants (D05, D06, D07, D08, D09, D11). This manual is written in German.
The standard flange dimensions are 200 × 165 × 130 mm (with additional parameters 12, 11, 196, 3.5, 60).
The motor can be supplied with a brake, indicated by the section "Ausführung mit Bremse" (with brake).
