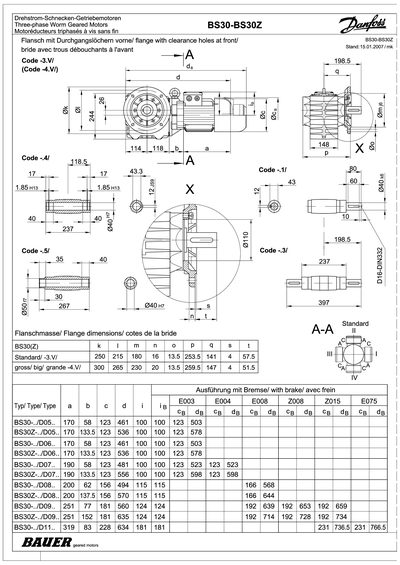

DANFOSS BAUER-BS30/30Z- technology data(German)
The document provides technical data for the Danfoss BS30/30Z three‑phase worm geared motor, including its construction variants, flange options and brake configurations. It lists the standard dimensions, mounting options and code designations used for ordering.
Various flange types are described (clearance holes, tapped holes, with or without brake) together with their corresponding size codes and dimensional tables. The data sheet also includes torque arm specifications and foot mounting options. This manual is written in German.
Danfoss 30Z specifications
| Flange dimensions (mm) | 250 × 215 × 180 |
|---|---|
| Brake code | -5.V/ |
| Torque arm at front (mm) | 244 |
All Danfoss 30Z documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the standard flange dimensions for the BS30 model?
The standard flange dimensions are 250 mm × 215 mm × 180 mm.
Is a brake option available for the BS30/30Z motor?
Yes, a brake option is indicated by code -5.V/.
What are the standard flange dimensions for the BG30 motor?
The standard flange dimensions are 200 × 165 × 130 mm (with additional parameters 12, 11, 196, 3.5, 60).
What brake options are available for the BG30 motor?
The motor can be supplied with a brake, indicated by the section "Ausführung mit Bremse" (with brake).
