This document introduces an electronic igniter SN 58 for HID lamp circuits, which can be used for ceramic metal halide lamps and high pressure sodium lamps. It has a semi-parallel trigger type, suitable for line voltage of 220-240V and frequency of 50/60Hz. The electronic igniter has high triggering voltage and stable power supply voltage performance, and is made of high temperature resistant material. In addition, the product has passed ENEC certification and complies with relevant standards.

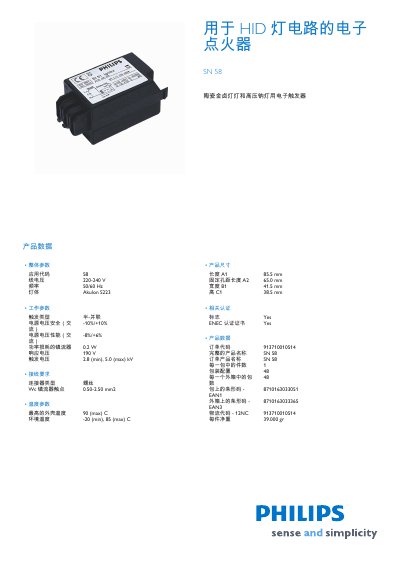

The Philips SN 58 electronic igniter is designed for HID lamp circuits, supporting ceramic metal‑halide and high‑pressure sodium lamps. It operates from a 220‑240 V AC supply at 50/60 Hz and uses a half‑parallel trigger type.
Key parameters include trigger voltage 2.8‑5.0 kV, maximum housing temperature 90 °C, and dimensions of 85.5 mm × 41.5 mm × 38.5 mm. The unit carries ENEC certification and includes detailed wiring and ballast connection requirements. This manual is written in Chinese.
| Line voltage | 220‑240 V AC |
|---|---|
| Frequency | 50/60 Hz |
| Trigger type | Half‑parallel |
| Trigger voltage | 2.8 kV (min) – 5.0 kV (max) |
| Response voltage | 190 V |
| Power loss of ballast | 0.2 W |
| Maximum housing temperature | 90 °C |
| Ambient temperature range | -20 °C (min) – 85 °C (max) |
| Length | 85.5 mm |
| Width | 41.5 mm |
| Height | 38.5 mm |
It operates from a 220‑240 V AC supply.
The trigger voltage ranges from 2.8 kV minimum to 5.0 kV maximum.
Yes, it carries ENEC certification.
