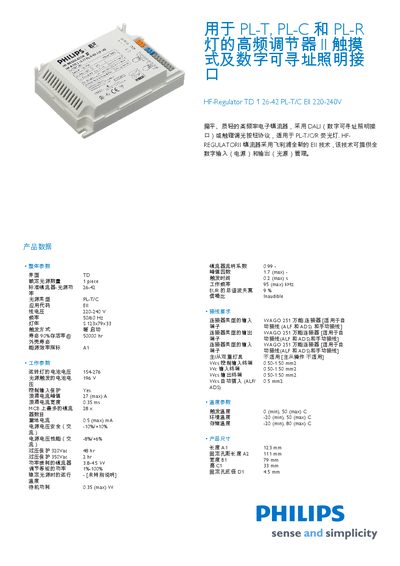

The document describes the features and characteristics of the HF-Regulator TD 1 26-42 PL-T/C EII 220-240V high-frequency regulator II, which is suitable for PL-T/C/R fluorescent lamps and uses DALI or touch dimming button protocol.
This manual provides operating instructions for the Philips HF‑RTD1 26‑42 PL‑TAC high‑frequency regulator, which is used with PL‑T, PL‑C and PL‑R fluorescent lamps. It describes the regulator’s features, such as DALI or touch‑dim control, and outlines safety and certification information.
The document lists key technical data, wiring requirements, temperature limits, and physical dimensions, and includes reference tables for input voltage, surge protection, and harmonic distortion. Installation notes and connector recommendations are also provided. This manual is written in Chinese.
| Line voltage | 220‑240 V |
|---|---|
| Line frequency | 50/60 Hz |
| Lumens coefficient | 0.99 |
| Peak factor | 17 (max) |
| Trigger time | 0.2 s (max) |
| Operating frequency | 95 kHz (max) |
| Total harmonic distortion | 9 % |
| Input surge current | 0.5 mA (max) |
| Operating temperature range | 0 °C – 50 °C |
| Storage temperature range | -20 °C – 80 °C |
| Length | 123 mm |
| Width | 79 mm |
| Height | 33 mm |
It operates on a 220‑240 V AC supply.
Use WAGO 251 universal connectors for both input and output connections.
The trigger time is up to 0.2 seconds (max).
It can operate between 0 °C and 50 °C.
