HF-Regulator 149 TL5 EII 220-240V 50/60Hz is a flat, ultra-thin, lightweight high-frequency electronic ballast with an analog protocol of 1-10V, suitable for PL-L fluorescent lamps.

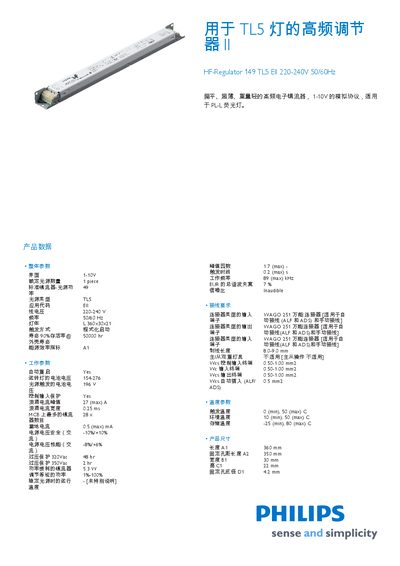

This manual describes the Philips TL5 high‑frequency regulator used for TL5 fluorescent lamps. It includes product data, overall parameters, and detailed wiring requirements.
Technical specifications such as input voltage, frequency, lamp size, lifetime, and safety features are listed, along with certification information and connection details for proper installation. This manual is written in Chinese.
| Input Voltage | 220-240 V |
|---|---|
| Lamp Size | L360x30x21 mm |
| Lamp Lifetime | 50000 hr |
| Maximum Current | 27 A |
| Leakage Current | 0.5 mA (max) |
The regulator operates on 220‑240 V AC.
The lamp lifetime is rated at 50000 hours.
