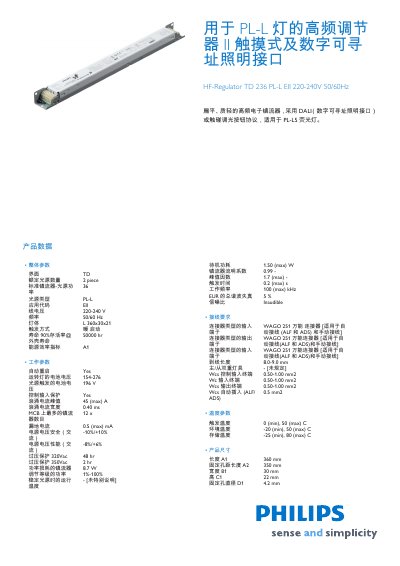

The HF-Regulator TD 236 PL-L EII is a slim and lightweight high-frequency electronic ballast for PL-L5 fluorescent lamps. It can be adjusted using DALI or touch dimming button protocols. The ballast features automatic restart and is designed for a power supply voltage of 220-240V 50/60Hz. It has a high energy efficiency rating and operates at a stable temperature. The ballast also includes input and output connectors, as well as various certifications and standards.
This manual describes the high‑frequency electronic ballast (HF‑Regulator) designed for PL‑L5 fluorescent lamps. It explains the touch and DALI digital addressable lighting interface, installation requirements, and safety features.
Key sections cover product data, operating parameters, wiring connections, temperature limits, physical dimensions, and compliance certifications. The document also lists ordering information and packaging details. This manual is written in Chinese.
| Rated lamp quantity | 2 piece |
|---|---|
| Standard ballast lamp power | 36 W |
| Input voltage | 220‑240 V |
| Frequency | 50/60 Hz |
| Power loss | 8.7 W |
| Operating temperature range | -20 °C to 50 °C |
| Surge current peak | 45 A (max) |
The regulator is rated for 2 lamps.
It can tolerate a surge current peak of up to 45 A.
