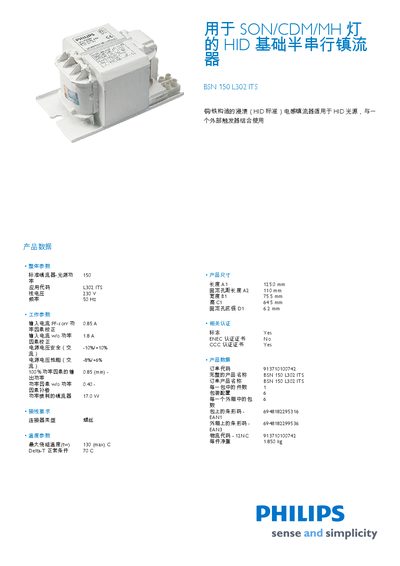

BSN 150 L302 ITS is an HID basic semi-series choke for SON/CDM/MH lamps. It is made of copper/iron construction and suitable for HID light sources, used in combination with an external trigger.
This manual provides an overview of the Philips BSN 150 L302 ITS high‑intensity discharge (HID) lamp, including its intended use, safety markings and basic product description. It lists the lamp's electrical ratings, dimensions and packaging information.
The document details operating parameters such as voltage, frequency, current, power consumption, power factor and temperature limits, as well as wiring requirements and mechanical dimensions for proper installation. This manual is written in Chinese.
| Operating Voltage | 230 V |
|---|---|
| Power Factor (min) | 0.85 |
| Maximum Temperature | 130 °C |
| Dimension A1 (length) | 125.0 mm |
| Dimension A2 (width) | 110 mm |
| Dimension B1 (height) | 75.5 mm |
| Dimension C1 (depth) | 64.5 mm |
| Dimension D1 (hole diameter) | 6.2 mm |
The lamp operates at 230 V.
The lamp measures 125.0 mm (A1), 110 mm (A2), 75.5 mm (B1), 64.5 mm (C1) with a 6.2 mm hole diameter (D1).
