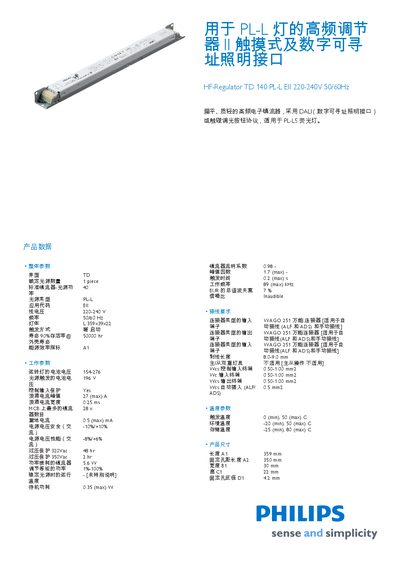

HF-Regulator TD 140 PL-L EII 220-240V 50/60Hz is a flat, lightweight high frequency electronic ballast for PL-L5 fluorescent lamps, using DALI (Digital Addressable Lighting Interface) or touch dimming button protocol.
The HF-RTD 140 PL-L is a lightweight high‑frequency electronic ballast designed for PL‑L fluorescent lamps. It supports DALI (digital addressable lighting interface) or touch‑dim control protocols and operates at 220‑240 V, 50/60 Hz.
The manual lists key parameters such as line voltage, frequency, maximum input current, trigger time, and operating frequency, as well as dimensions, weight, and environmental limits. It also details wiring requirements using WAGO 251 universal connectors and provides certification and safety information. This manual is written in Chinese.
| Line voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Maximum input current | 27 A (max) |
| Trigger time | 0.2 s (max) |
| Operating frequency | 89 kHz (max) |
| Weight | 0.260 kg |
| Lifetime | 50 000 h |
| Surge current peak | 0.5 mA (max) |
| Trigger temperature range | 0 °C (min) – 50 °C (max) |
The regulator operates on a line voltage of 220‑240 V.
WAGO 251 universal connectors are recommended for both input and output, suitable for automatic (ALF and ADS) and manual wiring.
The maximum trigger time is 0.2 seconds.
