HF-Regulator 324 TL5/PL-L EII 220-240V 50/60Hz is a high frequency regulator for TL5 lamps, it is a flat, ultra-thin, lightweight high frequency electronic ballast with a 1-10V analog protocol, suitable for PL-L fluorescent lamps.

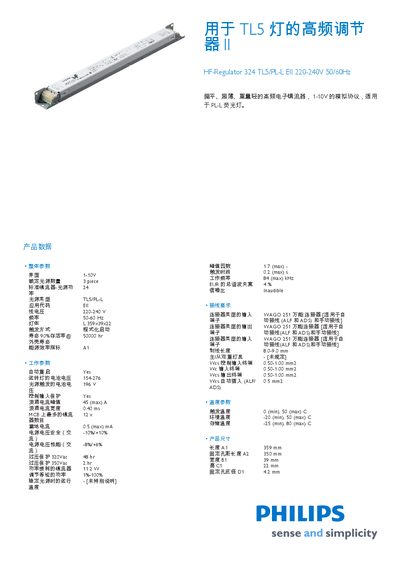

This manual provides the product data and overall parameters for the Philips HF-R 324 TLS/PL-L high‑frequency regulator, designed for TL5 fluorescent lamps. It includes details on input voltage, lamp capacity, dimensions, and operating conditions.
The document also describes wiring requirements, safety protections such as over‑voltage and surge current limits, and certification information. Technical specifications such as lifetime, temperature ranges, and maximum current values are listed for proper installation and maintenance. This manual is written in Chinese.
| Input voltage | 220‑240 V, 50‑60 Hz |
|---|---|
| Maximum number of lamps | 3 |
| Lamp dimensions | 359 mm × 39 mm × 22 mm |
| Rated lifetime | 50 000 h |
| Maximum surge current | 0.5 mA (max) |
| Maximum inrush current | 45 A (max) |
| Operating temperature range | -20 °C to 50 °C |
| Storage temperature range | -25 °C to 80 °C |
| Net weight | 0.385 kg |
The regulator operates on 220‑240 V AC at 50‑60 Hz.
Up to three TL5 lamps can be connected.
The maximum surge current is 0.5 mA.
It can operate between –20 °C and 50 °C.
