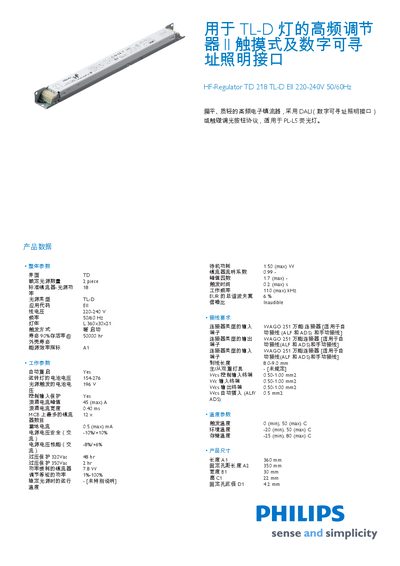

This document describes the features and characteristics of the high-frequency regulator II touch and digital addressable lighting interface HF-Regulator TD 218 TL-D EII 220-240V 50/60Hz for TL-D lamps, suitable for PL-L5 fluorescent lamps.
This manual provides the technical data, wiring requirements, and operating parameters for the Philips HF‑RTD 218 TL‑D high‑frequency regulator used with TL‑D lamps. It includes details on input voltage, frequency, standby power, and environmental limits.
Key sections cover product dimensions, temperature ranges, protection features, and certification information, helping installers and technicians correctly set up and maintain the device. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Standby power consumption | 1.50 W (max) |
| Lumen coefficient | 0.99 |
| Peak factor | 17 (max) |
| Trigger time | 0.2 s (max) |
| Working frequency | 110 kHz (max) |
| Lamp life | 50 000 h |
| Operating temperature (ambient) | -20 °C to 50 °C |
| Storage temperature | -25 °C to 80 °C |
The standby power consumption is up to 1.50 W.
