HF-R TD 318 TL-D EII 220-240V 50/60Hz is a flat, lightweight high-frequency electronic ballast that uses DALI (digital addressable lighting interface) or touch dimming button protocol for PL-L5 fluorescent lamps.
The Philips HF‑RTD 318 TL‑D is a high‑frequency electronic ballast designed for TL‑D fluorescent lamps. It supports DALI (Digital Addressable Lighting Interface) or touch‑dim button protocols and operates on 220‑240 V AC at 50‑60 Hz.

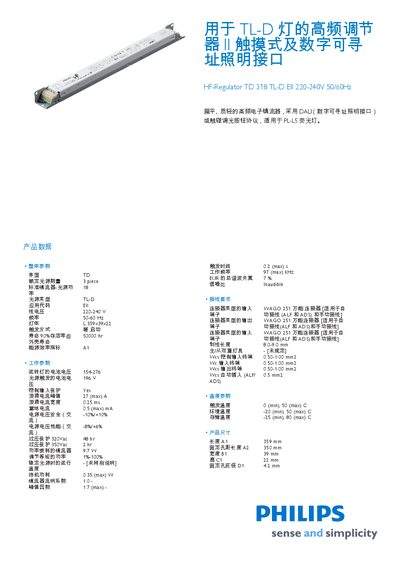

The manual provides product data, dimensions, temperature limits, wiring requirements, and compliance certifications. It also lists key electrical parameters such as surge current, trigger time, and operating frequency. This manual is written in Chinese.
| Input voltage | 220‑240 V AC |
|---|---|
| Frequency | 50‑60 Hz |
| Number of lamps supported | 3 pieces |
| Maximum surge current | 27 A |
| Maximum surge current recognition | 0.5 mA |
| Trigger time | 0.2 s (max) |
| Operating frequency | 97 kHz (max) |
| Operating temperature range | -20 °C to 50 °C |
| Storage temperature range | -25 °C to 80 °C |
| Length | 359 mm |
| Width | 39 mm |
| Height | 22 mm |
| Net weight | 0.365 kg |
The regulator operates on 220‑240 V AC.
It supports up to three TL‑D lamps.
The unit can operate from –20 °C to 50 °C.
The maximum surge current is 27 A.
