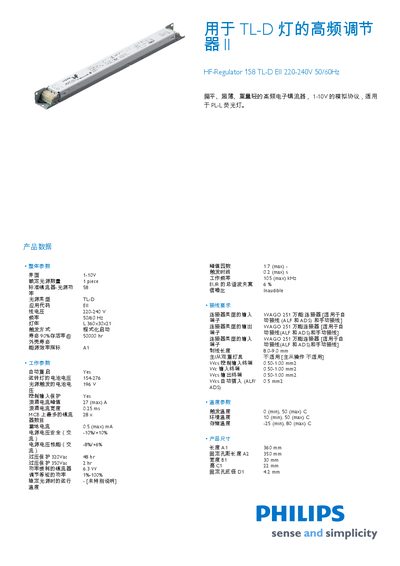

HF-R 158 TL-D EII 220-240V 50/60Hz is a flat, ultra-thin, lightweight high-frequency electronic ballast for TL-D lamps. It is a 1-10V analog protocol suitable for PL-L fluorescent lamps.
This manual provides the product data and overall parameters for the Philips HF‑R158 TL‑D EII high‑frequency regulator used with TL‑D fluorescent lamps. It includes details on input voltage, frequency, lamp dimensions, trigger method, and lifetime expectations.
The document also lists wiring requirements, control input protection, surge current limits, temperature ranges, physical dimensions, and relevant certifications and safety standards for proper installation and operation. This manual is written in Chinese.
| Input voltage | 220-240 V |
|---|---|
| Frequency | 50/60 Hz |
| Lamp body size | L360x30x21 mm |
| Rated lamp quantity | 1 piece |
| Lamp lifetime | 50000 hr |
| Trigger time (max) | 0.2 s |
| Operating frequency (max) | 105 kHz |
| Peak factor (max) | 17 |
| Environmental temperature range | 10 °C – 50 °C |
| Storage temperature range | -25 °C – 80 °C |
The regulator operates on 220‑240 V AC.
The maximum operating frequency is 105 kHz.
