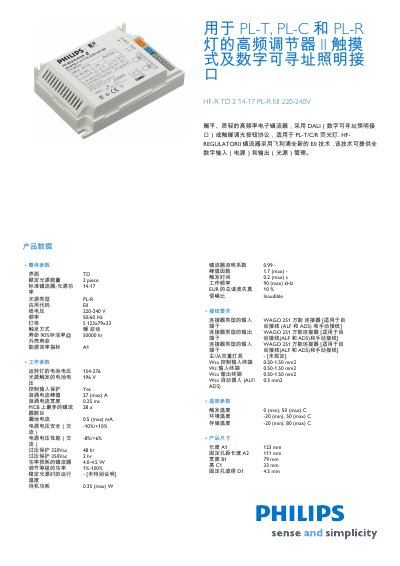

HF-R TD 2 14-17 PL-R EII 220-240V is a high frequency electronic ballast from Philips that is suitable for PL-T/C/R fluorescent lamps. This ballast uses DALI (Digital Addressable Lighting Interface) or touch dimming button protocol to achieve full digital input (power) and output (light source) management.
The HF‑R TD 2 14‑17 PL‑R EII high‑frequency regulator II is a compact electronic ballast designed for PL‑T, PL‑C and PL‑R fluorescent lamps. It can be controlled via a DALI digital addressable lighting interface or a touch‑dim button protocol, providing full digital input and output management.
The device operates on 220‑240 V AC at 50/60 Hz, with a working frequency up to 90 kHz. It includes protections such as over‑voltage and surge‑current limits, and meets multiple safety and EMC standards (IEC 61347‑2‑3, EN 55015, etc.). Physical dimensions are 123 mm × 79 mm × 33 mm. This manual is written in Chinese.
| Rated lamp quantity | 2 piece |
|---|---|
| Lamp power | 14‑17 W |
| Line voltage | 220‑240 V |
| Supply frequency | 50/60 Hz |
| Working frequency | 90 kHz (max) |
| Surge current peak | 27 A (max) |
| Power loss | 4.0‑4.5 W |
| Standby power | 0.35 W (max) |
| Total harmonic distortion | 10 % |
| Signal‑to‑noise ratio | Inaudible |
It is designed for PL‑T, PL‑C and PL‑R fluorescent lamps.
It can be controlled via DALI (digital addressable lighting interface) or a touch‑dim button protocol.
The regulator tolerates a surge current peak of 27 A (max) for 0.25 ms.
