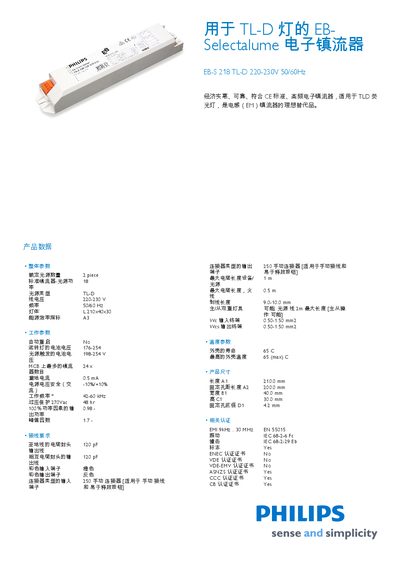

EB-S 218 TL-D 220-230V 50/60Hz is an affordable, reliable, CE-compliant, high-frequency electronic ballast for TLD fluorescent lamps, which is an ideal replacement for inductive (EM) ballasts.
This manual lists the overall parameters of the Philips EB‑S 218 TL‑D lighting unit, including rated voltage (220‑230 V), frequency (50/60 Hz), power factor (100 %), and current (0.5 mA). It also details operating parameters such as EMI range (9 kHz‑30 MHz) and compliance certifications (EN55015, IEC standards).
Physical dimensions are given as 210 mm × 40 mm × 30 mm with a weight of 0.239 kg. Temperature limits specify a maximum ambient temperature of 65 °C. The document includes wiring requirements, terminal designations, and packaging information, noting that each box contains one unit and the barcode number 6923410769432. This manual is written in Chinese.
| Rated Voltage | 220‑230 V |
|---|---|
| Frequency | 50/60 Hz |
| Power Factor | 100 % (unity) |
| EMI Range | 9 kHz‑30 MHz |
| Dimensions (L×W×H) | 210 mm × 40 mm × 30 mm |
| Weight | 0.239 kg |
| Maximum Ambient Temperature | 65 °C |
The unit is rated for 220‑230 V.
It operates at 50 Hz or 60 Hz.
The lamp measures 210 mm in length, 40 mm in width, and 30 mm in height.
The maximum ambient temperature is 65 °C.
