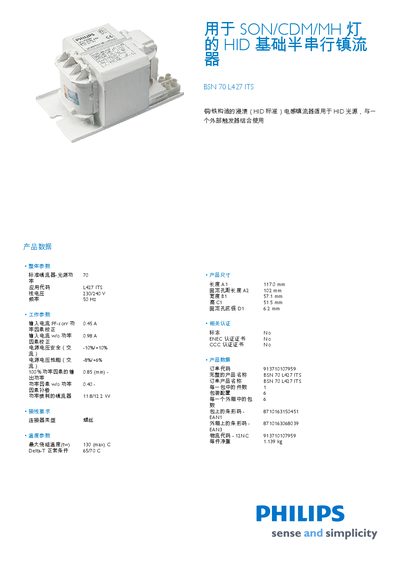

This document is the product information manual of BSN 70 L427 ITS HID basic semi-serial ballast, including product parameters, certifications, dimensions, etc.
This manual describes the Philips BSN 70 L427 ITS HID lighting product, including its overall and working parameters, connection requirements, and temperature limits. It also lists packaging details such as unit count per box and bar‑code information.
Electrical data such as rated voltage, frequency, current values, power‑factor limits and maximum operating temperature are given, together with the physical dimensions of the fixture and its weight. This manual is written in Chinese.
| Rated Voltage | 230 V |
|---|---|
| Power Factor (min) | 0.85 |
| Maximum Operating Temperature | 130 °C |
| Dimension A1 | 117.0 mm |
| Dimension A2 | 102 mm |
| Dimension B1 | 57.1 mm |
| Dimension C1 | 51.5 mm |
| Dimension D1 | 6.2 mm |
| Weight | 1.139 kg |
The unit is rated at 230 V.
The fixture measures A1 117.0 mm, A2 102 mm, B1 57.1 mm, C1 51.5 mm and D1 6.2 mm.
The maximum allowed temperature is 130 °C.
