The CP 06BN28 Supplementary Capacitor is an AC capacitor designed for single correction of power factor in transformers and magnetic ballasts in discharge lighting sources such as fluorescent, halogen and ceramic metal halide, high pressure mercury and sodium sources with line frequency of 50 or 60Hz. This gives the light source a power factor boost, cosμ above 0.85.

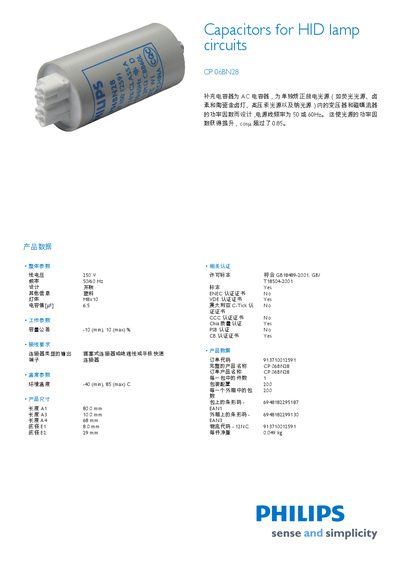

This datasheet describes the Philips CP 06BN28 capacitor designed for HID lamp circuits, detailing its electrical parameters, mechanical dimensions, and applicable standards. It is intended for use with high‑intensity discharge lamps such as metal‑halide and high‑pressure sodium lamps.
Key specifications include a 250 V rating, 50/60 Hz operation, tolerance of ±10 %, temperature range from –40 °C to 85 °C, and compact dimensions. The product complies with GB18489‑2001, GB/T18504‑2001, ENEC, and VDE standards and is packaged as single units in boxes of 200. This manual is written in Chinese.
| Frequency | 50/60 Hz |
|---|---|
| Capacitance Tolerance | -10 % to +10 % |
| Operating Temperature Range | -40 °C to 85 °C |
| Units per Carton | 200 |
| Compliance Standards | GB18489‑2001, GB/T18504‑2001, ENEC, VDE |
It operates from –40 °C (minimum) to 85 °C (maximum).
It complies with GB18489‑2001, GB/T18504‑2001, ENEC, and VDE standards.
