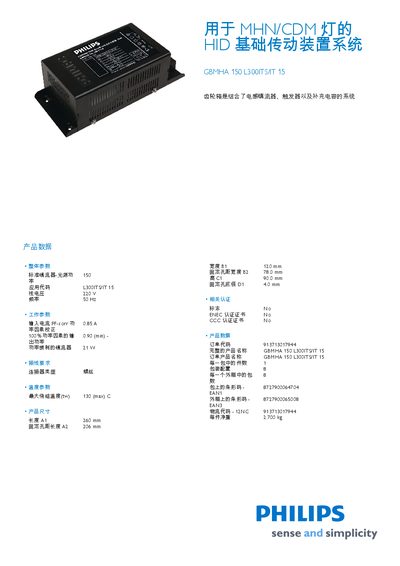

This document provides product data for the HID basic drive system GBMHA 150 L300ITS/IT 15 used for MHN/CDM lamps, including overall parameters, operating parameters, wiring requirements, temperature parameters, product dimensions, related certifications, and a 2D drawing.
This document presents the technical specifications of the Philips GBMHA 150 L300ITS/IT 15 HID lighting base transmission unit, including overall parameters, working parameters, wiring requirements, temperature limits, and physical dimensions. It also lists packaging configuration and compliance markings.
Key data such as rated voltage (220 V), frequency (50 Hz), current (0.865 A), power factor (min 0.90), power consumption (21 W), and maximum operating temperature (130 °C) are provided together with detailed size measurements and part numbers for easy identification and installation. This manual is written in Chinese.
| Minimum Power Factor | 0.90 (min) |
|---|---|
| Maximum Operating Temperature | 130 (max) |
The unit is rated at 220 V and 50 Hz.
