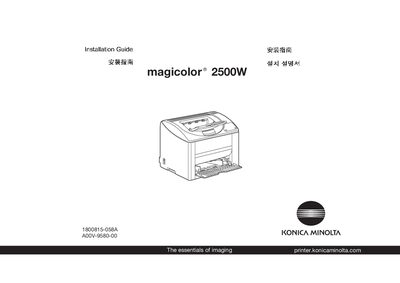

The magicolor ® 2500W is a printer with the model number 1800815-058A A00V-9580-00. This printer features a compact design and is suitable for 120V voltage. It has a USB interface and a rotating toner function. The printer also comes with a software and documentation CD-ROM called KONICA MINOLTA magicolor 2500W Utilities & Documentation.
This Installation Guide provides step‑by‑step instructions for setting up the Konica Minolta magicolor 2500W printer. It begins with safety precautions, advises checking the Safety Information Guide, and outlines proper disposal of packing material. Required floor space dimensions and clearances are listed to ensure adequate placement.
The guide details power requirements (110 V AC 60 Hz or 220‑240 V AC 50/60 Hz), maximum paper weight, and the use of the supplied Utilities & Documentation CD‑ROM. It explains that the USB cable should not be connected until prompted, after which the printer can be linked to a PC for configuration, troubleshooting, and consumable replacement.
| Required width | 630 mm (24.8") |
|---|---|
| Required depth | 698 mm (27.5") |
| Required height | 489 mm (19.3") |
| Power supply (US) | 110 V AC 60 Hz |
| Power supply (EU) | 220 to 240 V AC 50 Hz/60 Hz |
| Maximum paper weight | 200 g/m² (16‑24 lb) |
Before setting up the printer, examine the safety information in the Safety Information Guide and dispose of the packing material according to local regulations.
The printer can operate on 110 V AC 60 Hz or on 220‑240 V AC 50 Hz/60 Hz.
