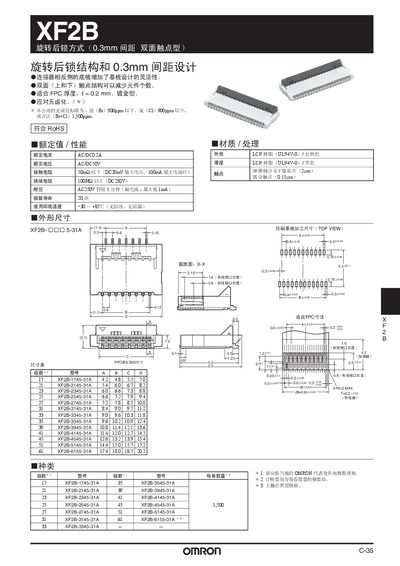

XF2B 旋转后锁方式（0.3mm 间距 双面触点型）is a connector with a rotation locking structure and a 0.3mm pitch design. It is suitable for FPC thickness, t = 0.2 mm. Gold-plated.
The XF2B series is a double‑sided contact connector designed for a 0.3 mm pitch and a spin‑after‑lock mounting style. It offers a flexible PCB base design and reduces component count with its dual‑face contact structure, suitable for FPC thickness of 0.2 mm and gold‑plated contacts.
Key electrical and mechanical characteristics include a rated current of 0.2 A, contact resistance ≤ 50 mΩ, insulation resistance ≥ 100 MΩ, dielectric strength of 250 V for 1 minute, and an operating temperature range of –30 °C to +85 °C. The connector is made of UL94V‑0 LCP resin housing and complies with Omron’s halogen‑free standards. This manual is written in Chinese.
| Rated current | 0.2 A |
|---|---|
| Contact resistance | ≤ 50 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Dielectric strength | 250 V (1 min) |
| Insertion cycles | 20 cycles |
| Operating temperature range | -30 °C to +85 °C |
| Pitch | 0.3 mm |
| FPC thickness compatibility | 0.2 mm |
| Housing material | LCP resin (UL94V‑0) |
The XF2B connector is rated for a current of 0.2 A.
It can operate from –30 °C up to +85 °C.
The connector is rated for 20 plug‑unplug cycles.
The contact pitch is 0.3 mm.
