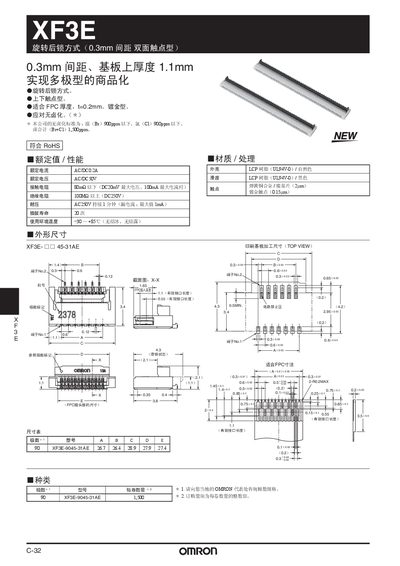

XF3E-9045-31AE is a XF3E series rotary lock connector with 0.3mm pitch, 1.1mm substrate thickness, upper and lower contact type, suitable for FPC thickness t=0.2mm, gold-plated, halogen-free.
The XF3E series connector features a 0.3 mm pitch double‑sided contact design, suitable for thin FPCs (0.2 mm) and compliant with RoHS standards. It is constructed from LCP resin with gold‑plated contacts and offers a compact profile for high‑density applications.
Key specifications include a rated current of 0.2 A, rated voltage of 50 V, contact resistance ≤8 mΩ, insulation resistance ≥100 MΩ at 250 V DC, dielectric strength of 250 V AC for 1 minute, operating temperature range –30 °C to +85 °C, and a rated insertion‑withdrawal life of 20 cycles. This manual is written in Chinese.
| Pitch | 0.3 mm |
|---|---|
| Rated current | 0.2 A |
| Rated voltage | 50 V |
| Contact resistance | ≤8 mΩ |
| Insulation resistance | ≥100 MΩ @ 250 V DC |
| Dielectric strength | 250 V AC for 1 min |
| Insertion cycles | 20 cycles |
| Operating temperature | -30 °C to +85 °C |
| RoHS compliance | Yes |
The connector has a 0.3 mm pitch.
The connector is rated for 20 insertion/withdrawal cycles.
It can operate from –30 °C to +85 °C.
