XF3A-□□55-41A rotating locking type connector, board thickness 0.6mm, spacing 0.3mm, the thinnest level. The base plate on the opposite side of the connector increases the flexibility of the board design. Upper contact type. Respond to halogen-free.

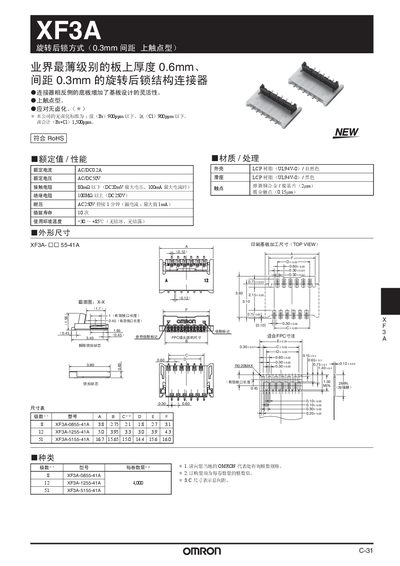

The document describes the electrical and mechanical characteristics of the Omron XF3A spin‑after‑lock contact, including rated current, voltage, contact resistance, insulation resistance, and operating temperature. It also lists the physical dimensions and contact spacing of the component.
Technical data such as rated current (4CDCO.2A), rated voltage (4CDCS0V), contact resistance (≤ sgOme, DC20 mV max at 100 mA), insulation resistance (≥ 100 MΩ), mechanical life (10 cycles), and temperature range (30 °C – +85 °C) are provided along with dimension tables for various part numbers. This manual is written in Japanese.
| Rated Current | 4CDCO.2A |
|---|---|
| Rated Voltage | 4CDCS0V |
| Contact Resistance | ≤ sgOme (DC20 mV max at 100 mA) |
| Insulation Resistance | ≥ 100 MΩ (DC250 V) |
| Mechanical Life | 10 cycles |
| Operating Temperature | 30 °C – +85 °C |
The rated current is 4CDCO.2A.
It is rated for 10 cycles of mechanical life.
The device operates from 30 °C to +85 °C.
