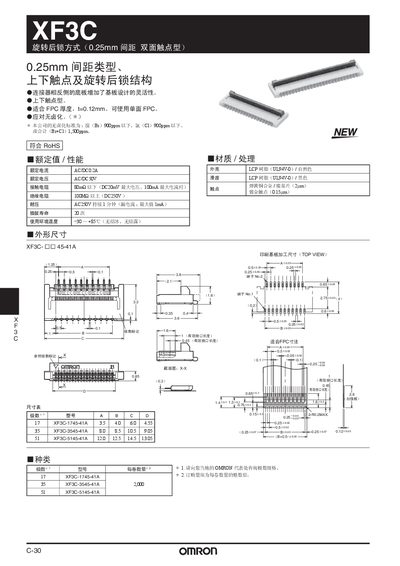

XF3C-□□45-41A is a 0.25mm pitch type, double-sided contact type and rotating rear lock structure connector produced by Omron. It has a flexible base plate design, double-sided contact type, suitable for FPC thickness t=0.12mm and single-sided FPC and response to halogen free.
The document describes the Omron XF3C connector designed for after‑lock mode operation. It details the mechanical layout, including a 0.25 mm pitch, double‑sided contacts, and compatible FPC thicknesses.
Key electrical and environmental parameters are listed, such as contact resistance limits, rated voltage, temperature range, and expected mating life. Material specifications and mounting dimensions are also provided. This manual is written in Japanese.
| Pitch | 0.25 mm |
|---|---|
| Contact resistance (low voltage) | ≤ 80 mΩ (DC20 mV, 100 mA max) |
| Contact resistance (high voltage) | ≥ 100 MΩ (DC250 V) |
| Rated voltage | 24 V DC |
| Rated voltage (alternative) | 50 V DC |
| Operating temperature range | -30 °C to +85 °C |
| Mating life | 20 cycles |
| FPC thickness | 0.12 mm |
| FPC type | Single‑sided FPC usable |
The contact resistance is 80 mΩ or less (measured at DC20 mV with a maximum current of 100 mA).
It can be used from –30 °C up to +85 °C.
The connector is rated for 20 mating cycles.
A thickness of 0.12 mm is specified, and single‑sided FPCs can be used.
