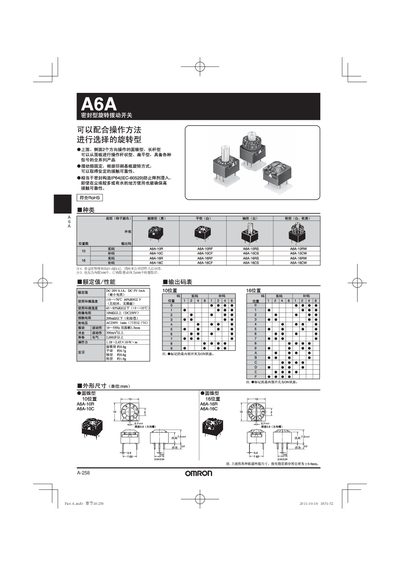

The Omron A6A series provides sealed rotary switches with multiple contact configurations (10‑position, 16‑position, etc.) suitable for harsh environments. The switches feature an IP64 sealing (IEC‑60529) to protect against dust and water ingress, making them reliable in dusty or wet locations.
The leaflet lists electrical ratings such as a maximum switching voltage of 250 VDC and contact resistance not exceeding 1200 mΩ, as well as mechanical dimensions for each model variant. Environmental limits are specified from –45 °C to +85 °C, and packaging is supplied in boxes of 100 units. This manual is written in Chinese.
| IP Rating | IP64 (IEC‑60529) |
|---|---|
| Maximum Switching Voltage | 250 VDC |
| Contact Resistance | ≤ 1200 mΩ |
| Positions Available | 10 or 16 |
The A6A sealed rotary switch has an IP64 rating according to IEC‑60529.
The series includes versions with 10 positions and 16 positions.
The maximum switching voltage is 250 VDC.
