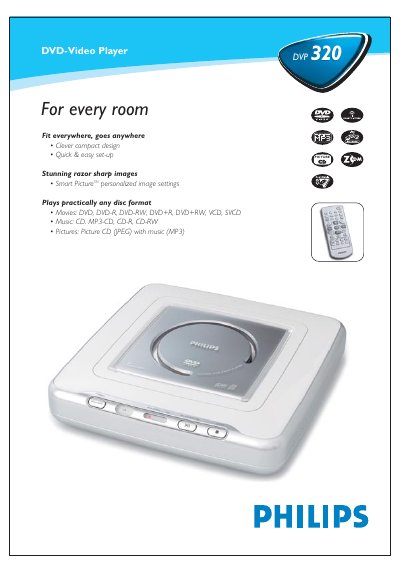

The document introduces a DVD-Video player called DVP 320, which features a clever compact design, quick and easy set-up, stunning razor sharp images, and the ability to play a wide range of disc formats.
This manual describes the Philips DVP 320 DVD‑Video Player, a compact device that supports a wide range of video, audio and picture disc formats. It includes quick‑setup instructions, remote‑control functions and Smart Picture™ settings for optimal image quality.
Detailed sections cover physical dimensions, bundled accessories, power requirements, video and audio performance, and all available connections. Technical specifications such as DAC resolution, signal‑to‑noise ratio and power consumption are listed for reference.
| Dimensions (DVD system) | 216 mm W × 45 mm H × 216 mm D |
|---|---|
| Weight (DVD system) | 0.9 kg |
| Power requirement | 110‑240 V, 50‑60 Hz |
| Power consumption | ≈10 W |
| Standby power | <2 W |
| Video DAC | 12‑bit, 54 MHz |
| Audio DAC | 24‑bit, 192 kHz |
| Signal‑to‑Noise Ratio (1 kHz) | 90 dB |
| Dynamic Range (1 kHz) | 80 dB |
| Video decoding | MPEG‑2 / MPEG‑1 |
| Audio decoder | Built‑in Dolby Digital |
It plays DVD, DVD‑R, DVD‑RW, DVD+R, DVD+RW, VCD and SVCD.
The player supports CD, MP3‑CD, CD‑R and CD‑RW.
It requires 110‑240 V at 50‑60 Hz, consumes about 10 W, and uses less than 2 W in standby.
The unit offers component video (Y, Pb, Pr) and CVBS (yellow cinch) outputs.
