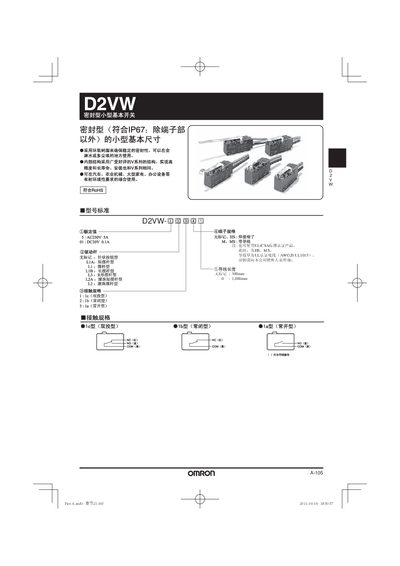

D2VW sealed small basic switch, rated 5A 0.1A. Provide welding terminals and wiring type choices.
The D2VW sealed basic switch is designed for environments requiring IP67 protection, using epoxy resin for a stable seal. It is suitable for automotive, agricultural machinery, large appliances, and office equipment where durability and environmental resistance are needed.
The manual provides electrical ratings, contact types, mechanical dimensions, wiring instructions, soldering guidelines, and safety precautions. It also details recommended installation torque, load limits, and protection against moisture, dust, and chemicals. This manual is written in Chinese.
| IP Protection | IP67 |
|---|---|
| Maximum Contact Rating (AC) | 250 V |
| Maximum Contact Rating (DC) | 30 V |
| Mechanical Life (operating cycles) | ≥100 000 cycles |
The D2VW switch is rated IP67, providing protection against dust and water immersion.
The switch is designed for at least 100 000 operating cycles.
