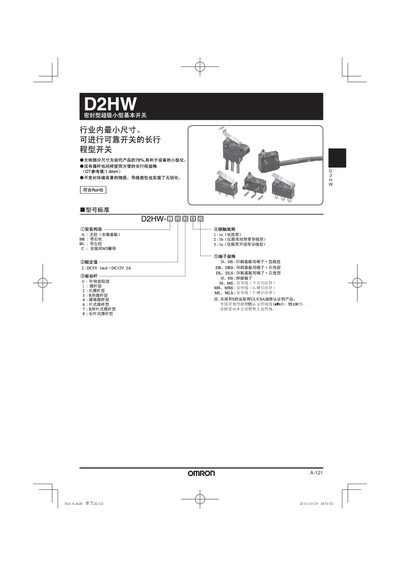

Detailed information about D2HW sealed miniature basic switch, including dimensions, characteristics and so on
The D2HW is a sealed ultra‑small basic switch offered by Omron. It features a compact size (78 % of the previous generation), RoHS compliance and UL/CSA certification for certain variants. The manual lists the available mounting types, terminal styles and contact specifications for each model variant.
Installation instructions cover mounting methods (with or without posts), wiring procedures, recommended soldering temperatures and safety precautions such as IP67 water‑proof rating. Detailed mechanical dimensions, actuation forces, travel distances and electrical ratings are provided for each switch type. This manual is written in Chinese.
| Rated Voltage (AC) | AC600V 50/60Hz |
|---|---|
| Rated Voltage (DC) | DC24V 1A |
| Actuation Force (max) | 0.75 N |
| Travel Distance (DT) | 1.4 mm |
| IP Rating | IP67 |
The D2HW switch is rated IP67, meaning it can be immersed in water up to 1 m for 30 minutes.
Yes, the switches meet RoHS requirements and contain no hazardous substances.
The switch can handle up to AC600 V at 50/60 Hz.
