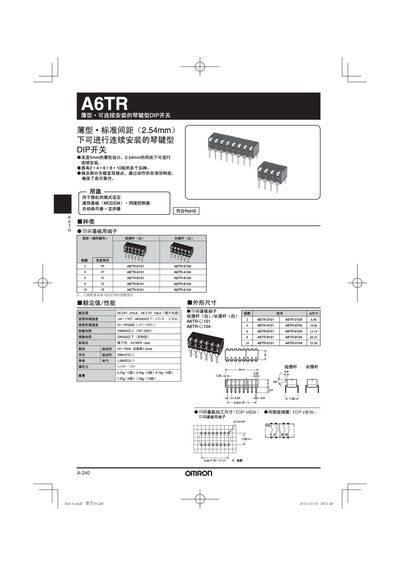

The A6TR is a low‑profile DIP switch designed for continuous mounting on printed circuit boards. It features a 5 mm height, 2.54 mm standard pitch, and gold‑plated double contacts for high reliability.
The switch is offered in 2, 4, 6, 8, and 10 pole configurations and is suitable for micro‑computer mode setting, modem boards, and servo control applications. It is packaged in units of two and operates from –20 °C to 60 °C with up to 80 % relative humidity. This manual is written in Chinese.
| Pitch | 2.54 mm |
|---|---|
| Height | 5 mm |
| Contact resistance | ≤200 mΩ (initial) |
| Insulation resistance | ≥100 MΩ (DC 230 V) |
| Rated voltage | AC 50 V |
| Operating temperature | -20 °C to 60 °C, ≤80 % RH |
| Actuation force | 0.29 N – 0.78 N |
The switch has a standard pitch of 2.54 mm.
The initial contact resistance is 200 mΩ or less.
It operates from –20 °C to 60 °C with up to 80 % relative humidity.
