D2JW is OMRON's micro switch with JIS and IEC IP67 protection grades. It works in the temperature range of -40～+85℃ and can be used in a variety of environments.
The D2JW is a sealed ultra‑small basic switch designed for harsh environments, operating from –40 °C to +85 °C. It uses gold‑alloy contact bars and a leaf‑spring for long life and reliable contact.

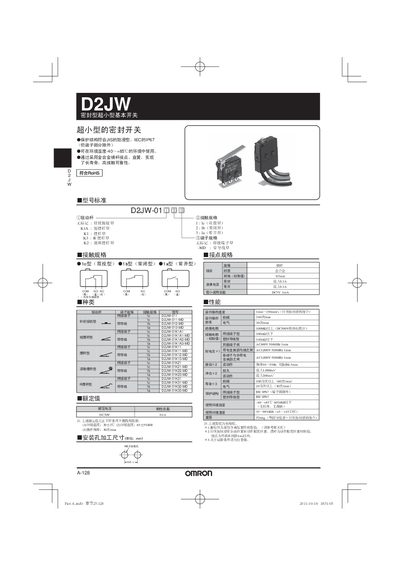

The manual details the switch’s dimensions, electrical ratings, mounting hole sizes, wiring guidelines, soldering precautions, and the required isolation plate when mounted to metal, helping users install and maintain the device safely. This manual is written in Chinese.
| Rated voltage | AC 600 V |
|---|---|
| Contact material | Gold‑alloy contact bar and leaf‑spring |
| Maximum actuation force | 245 N |
| Minimum release force | 0.38 N |
| Over‑travel (OT) | 0.3 mm |
The soldering iron tip temperature should be set to 250 °C.
Use M2.3 screws with washers or spring washers for mounting.
Yes, an isolation plate must be placed between the switch body and the mounting panel.
