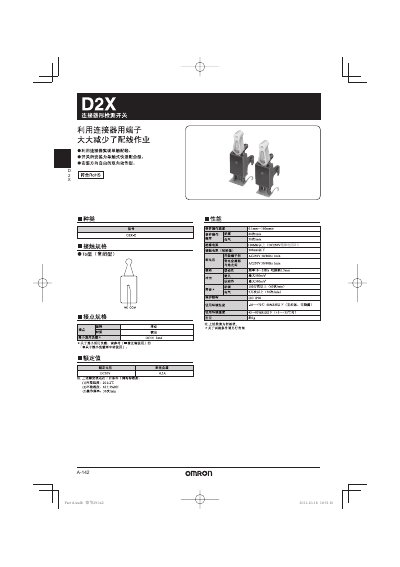

This manual describes the Omron D2X connector test switch, a single‑touch quick‑fit type switch designed for connector wiring reduction. It lists electrical ratings, mechanical limits, and environmental conditions for safe operation.
The document includes detailed installation hole dimensions, action characteristics, and wiring recommendations, as well as a note on the required Tyco Electronics connectors. Follow the illustrated dimensions and usage notes to ensure reliable installation and performance. This manual is written in Chinese.
| Contact rating | AC250V 50/60Hz |
|---|---|
| Maximum impact durability | 500,000 cycles |
| Maximum misoperation frequency | 10-55 Hz |
Refer to the drawing; typical hole sizes are 16 mm and 1.2 mm.
