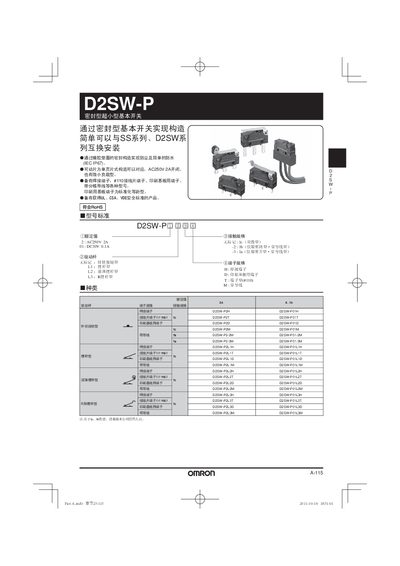

D2SW-P is a sealed ultra-small basic switch with dust-proof and simple waterproof functions. It can be installed interchangeably with the SS series and D2SW series. The product adopts a sealing structure with rubber gaskets, which meets the IEC IP67 standard. The moving contact is a single-page sheet structure, suitable for AC250V 2A open/close and micro-load types. It provides various terminal specifications and contact specifications. The product is UL, CSA, and VDE safety certified.
This manual describes the D2SW-P sealed ultra‑small basic switch, including its contact ratings (AC 250 V / 2 A, DC 30 V / 0.1 A), IP67 protection, and compliance with UL, CSA, VDE and RoHS standards. It also details the various terminal types (welding, #110 clip, printed‑circuit board) and mechanical dimensions.
Installation, wiring, and usage guidelines are provided, covering proper torque, sealing rubber handling, and precautions for micro‑load versions. Safety notes address water immersion, chemical exposure, and temperature extremes. This manual is written in Chinese.
| Rated DC voltage / current | 30 V / 0.1 A |
|---|---|
| Ingress protection rating | IP67 |
| RoHS compliance | Yes |
| Maximum operating speed | 500 mm/s |
The D2SW-P is rated IP67, meaning it is protected against dust and temporary immersion in water.
