A6HR miniature surface mounted piano-type DIP switches are made with gold-plated double contacts, to ensure outstanding reliability, and come in strip-pack packages suitable for automatic mounting.
The Omron A6HR is a surface‑mount, half‑pitch tactile toggle switch with gold‑plated double contacts for high reliability. It is supplied in both bulk and small‑packaging options and is suitable for automated placement.

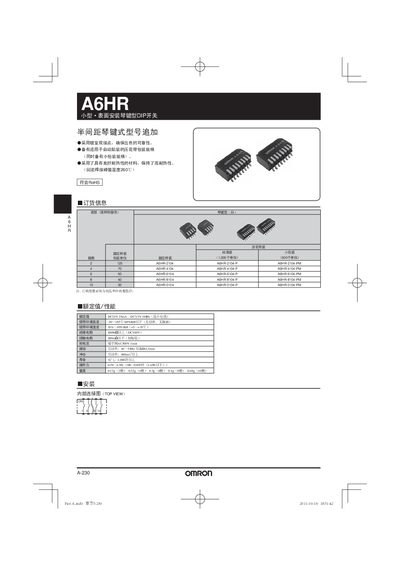

The document provides detailed performance data, dimensions, recommended PCB pad layout, and a list of ordering codes for the various variants of the A6HR series. This manual is written in Chinese.
| Contact type | Gold‑plated double contacts |
|---|---|
| Package type | Half‑pitch tactile toggle switch |
| Operating force | 29–4.3 N (2.45 N max for CDN–DFF) |
| Reflow soldering peak temperature | 260 °C |
The operating force ranges from 29 N to 4.3 N, with a maximum of 2.45 N for the CDN‑DFF variant.
The peak temperature for reflow soldering is 260 °C.
Available codes include A6HR‑2104, A6HR‑4104, A6HR‑6104, A6HR‑8102, and A6HR‑0104.
