The G3VM-101HR is a 100V, 1.4A MOSFET relay from OMRON that can control AC current and has a maximum working voltage of 1500Vrms.
The G3VM-101HR is a MOS‑FET relay that offers a very low on‑resistance comparable to mechanical relays, with a typical value of 100 mΩ. It can switch continuous load currents up to 1.4 A and withstands an isolation voltage of 1500 V rms between input and output.

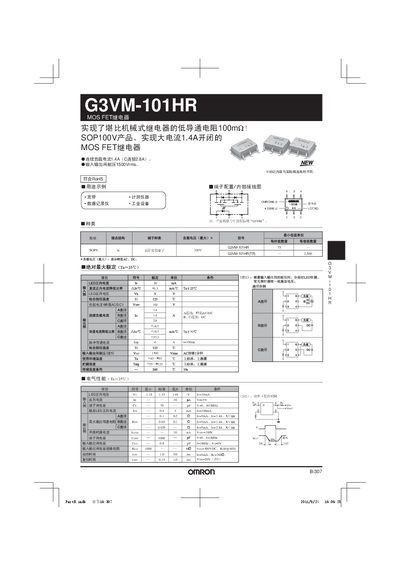

The document lists electrical characteristics such as LED forward current, load voltage limits, and recommended temperature ranges (‑40 °C to +85 °C). It also includes connection examples and notes on proper usage to ensure reliable actuation and reset of the relay. This manual is written in Chinese.
| On‑resistance | 100 mΩ |
|---|---|
| Continuous load current | 1.4 A |
| Isolation voltage | 1500 V rms |
| Maximum load voltage (peak AC/DC) | 100 V |
| LED forward current (actuation) | 20 mA |
| Operating temperature range | -40 °C to +85 °C |
The relay can handle a continuous load current of up to 1.4 A.
It is rated for an isolation voltage of 1500 V rms between input and output.
The relay is specified for operation from –40 °C to +85 °C.
Typical on‑resistance is about 100 mΩ.
