G3VM-81LR is a high-voltage N-channel MOSFET with a maximum operating voltage of 80V. It can be used to drive LED lights and has the advantages of low on-resistance and low gate current.

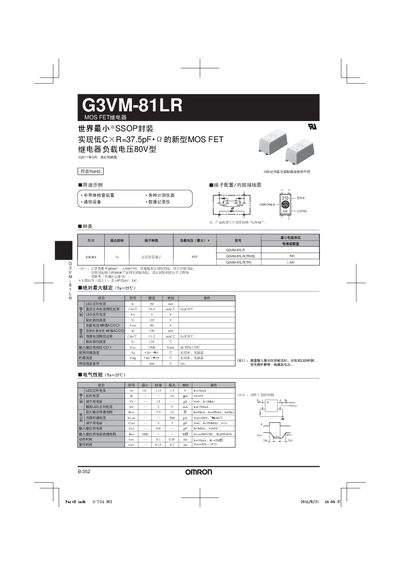

The G3VM-81LR is a MOS FET relay offered in the world’s smallest SSOP4 surface‑mount package. It is designed for low load capacitance (CXR≈37.5 pF) and supports a maximum load voltage of 80 V. The document includes package details, terminal layout, and handling notes for the un‑moisture‑sealed version.
Key electrical characteristics are listed, such as LED forward current (50 mA), LED reverse voltage (5 V), trigger LED forward current (10 mA), and a continuous load current rating of 120 mA. Recommended operating conditions and timing parameters (turn‑on and release times) are also provided to ensure reliable performance. This manual is written in Chinese.
| Maximum load voltage | 80 V |
|---|---|
| LED forward current | 50 mA |
| LED reverse voltage | 5 V |
| Continuous load current (peak AC/DC) | 120 mA |
| Trigger LED forward current | 10 mA |
The relay can handle a maximum load voltage of 80 V.
A forward current of 10 mA is specified for the trigger LED.
The continuous load current rating is 120 mA (peak AC/DC).
