The G2RG series of power relays are a small power relay produced by Panasonic. It has 2 poles, 4 poles, a contacts, plastic sealed type and other types. The rated voltage is DC12V, DC24V, the rated current is 8A, the maximum allowable voltage is 300V, the operating voltage is 6V, the reset voltage is 4V, the maximum switching frequency is 18,000 times/h, the contact resistance is 100mΩ or less, the insulation resistance is 1,000MΩ or more, the withstand voltage is AC5,000V 50/60Hz 1min, the withstand voltage is 10kV (1.2×50µs), the vibration resistance is 10～55～10Hz single vibration 0.75mm (double vibration 1.5mm), the shock resistance is 1,000m/s2 excitation: 200m/s2, no excitation: 100m/s2, the operating environment temperature is -40～+70℃ (no freezing, no condensation), and the operating environment humidity is 5～85%RH. The weight is about 17.2g.

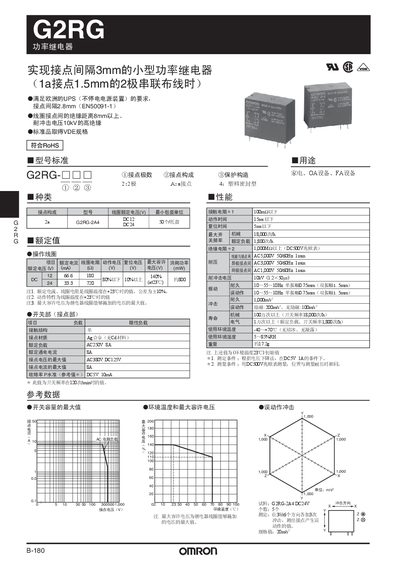

This document presents the technical data for Omron's G2RG series power relays, including electrical ratings, mechanical life, and environmental limits. It also lists the dimensions, contact materials, and wiring diagrams for proper installation.
The datasheet includes certification information (UL, CSA, EN, VDE) and notes on correct usage, such as temperature range, humidity tolerance, and insulation requirements. Reference tables give contact resistance, rated current, and voltage values for various configurations. This manual is written in Chinese.
| Coil voltage | 12~24VDC |
|---|---|
| Contact rating (AC) | 250 VAC |
| Contact resistance | ≤100 mΩ |
| Mechanical life | ≥18 000 cycles |
| Electrical life | ≥10 000 cycles |
| Insulation resistance | ≥1 000 MΩ |
| Operating temperature range | -40 °C to +70 °C |
| Contact material | Silver alloy |
| Weight | ≈17.2 g |
The G2RG relay operates on a coil voltage of 12 to 24 VDC.
The relay is rated for up to 250 VAC at 8 A.
It can be used from –40 °C up to +70 °C.
