G5CA series power relays are power relays produced by Panasonic. The rated current is 1A and the rated coil voltage can be selected from DC5V, DC12V and DC24V. The product has the characteristics of small size, light weight and long life.
The Omron G5CA series is a flat‑type power relay designed for heating loads in home appliances and output control in industrial equipment. It offers variants such as standard, high‑capacity, high‑sensitivity, and terminal‑type versions with UL and CSA certifications.

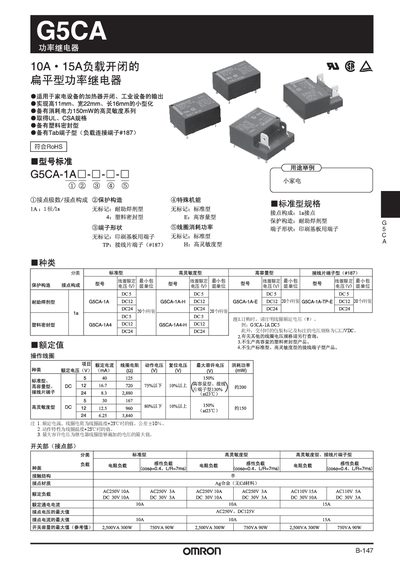

The manual provides detailed electrical ratings, coil operation data, mechanical characteristics, mounting guidelines, and certification information to ensure proper selection and reliable installation of the relay. This manual is written in Chinese.
| Coil Power Consumption | 150 mW |
|---|---|
| Contact Resistance | < 30 mΩ |
| Maximum Switching Frequency | 1 200 cps |
The coil consumes approximately 150 mW of power.
