G5Q power relay is a 1 pole 10A switching capacity small power relay with high switching performance and is suitable for various loads.
The Omron G5Q series are compact power relays with a 1‑pole 10 A switching capacity. They offer high switching performance for a variety of loads and are designed with a small coil‑to‑contact insulation voltage of 8 kV.

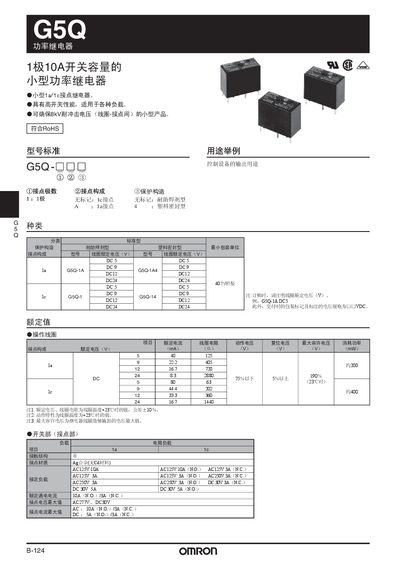

The datasheet provides detailed electrical ratings, mechanical life, environmental limits, and dimensional drawings for the G5Q‑1A, G5Q‑1A4 and related variants. This manual is written in Chinese.
| Contact rating | 1 pole 10 A |
|---|---|
| Contact resistance | ≤ 100 mΩ |
| Operating time | ≤ 10 ms |
| Insulation resistance | ≥ 1 000 MΩ |
| Mechanical life | ≥ 10 million operations |
| Weight | ≈ 6.5 g |
| Operating temperature range | -40 °C to +85 °C |
The contacts are rated up to AC 277 V and DC 30 V.
It can operate from –40 °C to +85 °C.
The contact resistance is specified as 100 mΩ or less.
