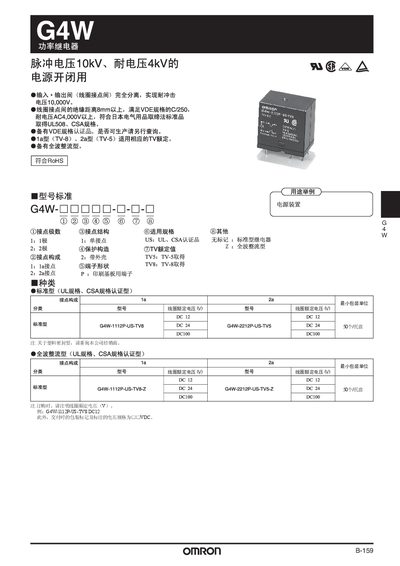

The G4W series power relays are designed for switching power loads such as motors, converters, solenoids, lamps and heaters. The manual describes the relay’s contact configurations, coil voltage options, and the recommended installation method on printed circuit boards.
Technical data include rated coil voltages (DC 12 V or DC 24 V), contact ratings (AC 250 V / DC 125 V), insulation resistance, switching capacity, operating temperature range, weight, and lifecycle. The relays are certified to UL, CSA and VDE standards, and the document lists the applicable part numbers and packaging details. This manual is written in Chinese.
| Coil Rated Voltage | DC 12 V / DC 24 V |
|---|---|
| Contact Voltage Rating | AC 250 V, DC 125 V |
| Maximum Switching Capacity | 3.75 VA – 2500 VA |
| Insulation Resistance | ≥100 MΩ (DC 500 V test) |
| Weight | ≈29 g |
| Mechanical Life | ≥5 million operations |
| Certifications | UL, CSA, VDE |
The G4W relay is offered with coil voltages of DC 12 V or DC 24 V.
The relay is certified to UL, CSA and VDE standards.
The contacts are rated for up to AC 250 V and DC 125 V.
