G4A power relay is a small power relay that achieves the switching of 80A motor load on and off with 20A on.
The G4A series is a compact, high‑capacity power relay designed for motor load switching up to 80 A. It features a robust high‑insulation construction, UL and CSA certifications, and a low contact resistance for reliable operation.

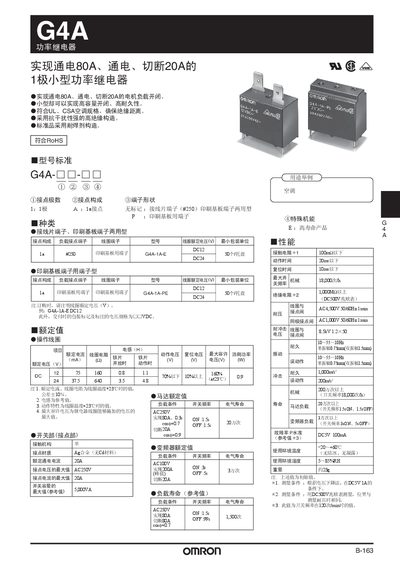

The manual includes detailed electrical specifications, terminal configurations, mechanical dimensions, and safety notes such as proper spacing for parallel installation and correct terminal insertion techniques. This manual is written in Chinese.
| Contact Resistance | ≤ 100 mΩ |
|---|---|
| Operating Time | ≤ 20 ms |
| Release Time | ≤ 10 ms |
| Weight | ≈ 23 g |
| UL Certification | UL, file No. E41643 |
| CSA Certification | CSA, file No. LR31928 |
It is certified by UL (file No. E41643) and CSA (file No. LR31928).
The contact resistance is specified as 100 mΩ or less.
