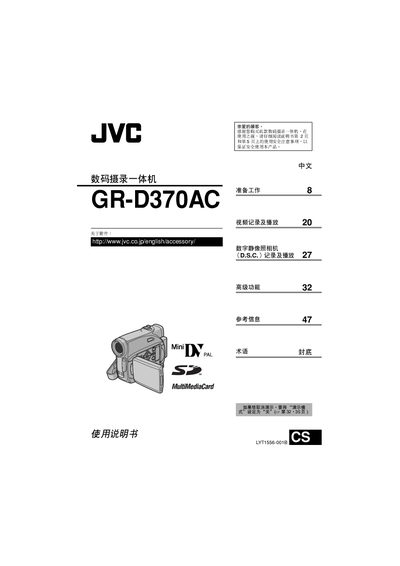

This document is the manual for JVC GR-D370AC camcorder, which describes the features and characteristics of the product.
This manual introduces the JVC GR‑D370AC digital video camcorder and explains safety precautions, battery handling, media requirements, and basic operation such as recording modes, playback, and cleaning procedures.
It also lists technical specifications, connection options (IEEE‑1394, USB, audio/video outputs), advanced features, and troubleshooting tips to help users maintain reliable performance. This manual is written in Chinese.
| DC Power (adapter) | 11 V |
|---|---|
| DC Power (battery) | 7.2 V |
| Dimensions (LCD off) | 59 mm × 94 mm × 114 mm |
| Weight (without battery, tape, lens cap) | ≈400 g |
| Operating temperature | 0 °C – 40 °C |
| Operating humidity | 35 % – 80 % |
| Lens | F 2.0, 2.3 mm – 73.6 mm focal length, 32:1 optical zoom |
| LCD monitor size | 2.5‑inch diagonal |
| Video format | DYV (SD mode) |
| Audio format | PCM, 32 kHz 4‑channel, 12‑bit |
| Tape speed (standard / long‑play) | 18.8 mm/s (standard), 12.5 mm/s (long‑play) |
| Maximum recording time (standard / long‑play) | 80 min (standard), 120 min (long‑play) |
Use SP (Standard) mode for important recordings; LP (Long‑Play) records about 50 % longer but may show artifacts depending on tape condition.
Regularly run a cleaning tape and store the camcorder and tape in a clean, dust‑free environment; remove the tape and keep the camcorder in its box when not in use.
The camcorder operates between 0 °C and 40 °C and in humidity ranging from 35 % to 80 %.
