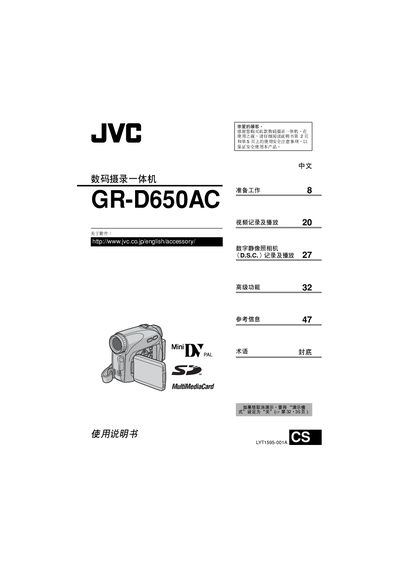

This document is the user manual of JVC GR-D650AC LYT1595-001A camcorder, including the product's specifications, features, and usage methods.
This manual covers safe handling, installation, and operation of the JVC GR‑D650AC digital videography camera. It includes detailed safety precautions, power‑up procedures, and guidance on using the built‑in Mini‑DV and SD recording media.
The document also lists the camera’s technical specifications such as dimensions, weight, power consumption, video and audio formats, and environmental limits, helping users understand the device’s capabilities and maintenance requirements. This manual is written in Chinese.
| Dimensions (W×H×D) | 59 mm × 97 mm × 112 mm |
|---|---|
| Weight (without battery) | 420 g |
| Weight (with battery) | 500 g |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 50 °C |
| Power Consumption (recording) | 2.8 W (typical 3.0 W) |
| Video Format | DV (SD mode) |
| Audio Format | PCM 32 kHz 4‑channel (12‑bit) |
| Lens Focal Length | 3.0 mm to 45 mm (F1.2) |
| Battery Type | CR2025 |
The camera uses a CR2025 lithium battery.
The device can operate from 0 °C up to 40 °C.
The camera measures 59 mm × 97 mm × 112 mm.
