Delta DVP-10PM Installation Guide

This instruction sheet only provides information on electrical specifications, functions, wiring. For detailed information on programming and instructions, please refer to “DVP-PM Application Manual: Programming”. For more information about the optional peripherals, please see individual product instruction sheet or “DVP-PLC Application Manual: Special Modules”.

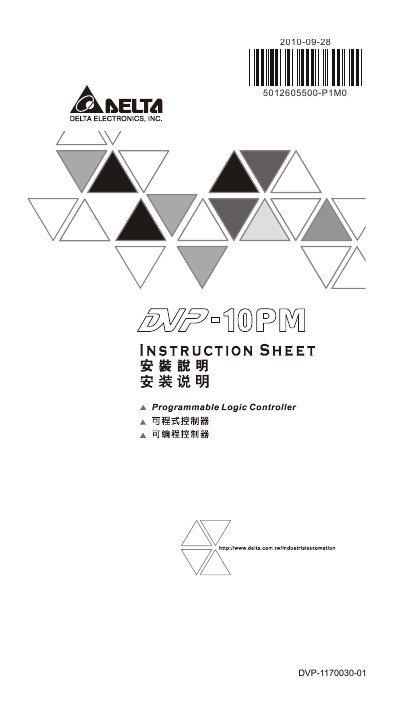

Delta DVP-10PM Installation Guide - cover page
Brand
AELTA
Category
Automation control Equipment
Document type
Installation Guide
Language
English
Pages
16
File format
PDF
File size
835 KB
Published
16 March, 2012
Updated
01 October, 2023
MD5 checksum
B17C7960D9EAC38A1433613AA43FFDD5

About this manual

This guide provides the electrical specifications, wiring diagrams, and installation instructions for the Delta DVP-10PM programmable controller. It covers power supply requirements, input and output point configurations, and safety precautions for proper mounting.

The document also explains battery‑low indication, permanent data storage options, and recommended grounding practices to ensure reliable operation in industrial environments.

What's inside

  • Product Profile & Dimensions
  • Electrical Specifications
  • Input Points
  • Output Points
  • Installation & Mounting
  • Wiring Guidelines
  • Power Supply
  • Battery Low Indicator
  • Safety and Grounding

Specifications

Power supply voltage100 ~ 240 VAC (-15% to +10%)
Power consumption60 VA
DC24V output current500 mA
Input voltage range5 ~ 24 VDC
Maximum input current15 mA
Maximum output current40 mA
Maximum output frequency1 MHz
Weight612 g

Frequently asked questions

What is the recommended size for the grounding wire?

The grounding wire shall not be smaller than the L and N power terminals.

What should be done when the BAT.LOW indicator lights?

Replace the battery promptly to avoid loss of data stored in the latched area.

Can the DVP-10PM be mounted on a DIN rail?

Yes, it can be mounted on a 35 mm DIN rail using the retaining clip provided.

What is the allowable AC input voltage range for the controller?

The controller accepts an AC input voltage of 100 V to 240 V.
