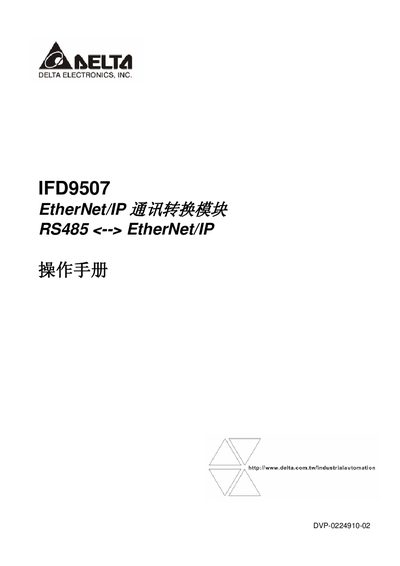

The IFD9507 EtherNet/IP Communication Conversion Module RS485 <--> EtherNet/IP Operation Manual mainly introduces the module's functional specifications, installation, basic operations and settings, as well as the introduction of network protocols.
This manual covers the IFD9507 communication module from Delta, describing its hardware interfaces, wiring, and configuration settings. It includes safety precautions, installation steps, and detailed register tables for basic, alarm, and monitor registers.
The document also explains supported protocols (EtherNet/IP, Modbus TCP), communication parameters (baud rates, RS‑485, RS‑232), and environmental specifications such as operating temperature, power requirements, and EMC test results. This manual is written in Japanese.
| Operating temperature | 0 °C – 55 °C, 50 %‑95 % RH |
|---|---|
| Storage temperature | -25 °C – 70 °C, 5 %‑95 % RH |
| ESD rating | 8 kV air discharge |
| Weight | 140 g |
The module provides three digital input contacts.
