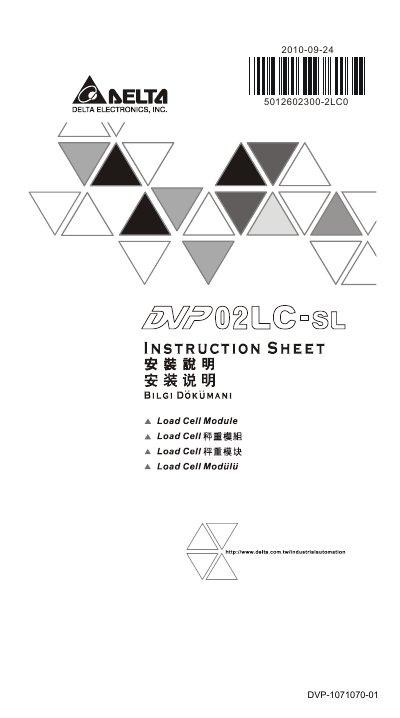

This instruction sheet provides introductory information on electrical specifications, general specifications, installation and wiring.
The DVP02LC-SL is a 24‑bit load cell module for Delta's DVP series PLC, supporting 4‑wire or 6‑wire strain‑gauge load cells. It offers adjustable response times and a range of measurement settings for precise weight measurement.
The guide covers safety precautions, mechanical mounting, external wiring, electrical specifications, control register settings, error codes, and communication configuration (RS‑232/RS‑485). It also provides detailed tables for register functions and wiring diagrams to assist installers and service technicians.
| Rated power supply voltage / power consumption | 24 VDC (-15 to +20%) / 3W |
|---|---|
| Voltage range | 18 to 31.2 VDC |
| Maximum current consumption | 125 mA |
| Input signal range | ±40 mVDC |
| Internal resolution | 24 bits |
| Communication ports | RS‑232, RS‑485 |
| Supported sensor type | 4‑wire or 6‑wire strain gauge |
| Response time options | 2, 10, 20, 40, 80 ms per channel |
| Maximum wiring distance to load cell | 100 m |
| Permitted load cell resistance | 40 to 4,010 Ω |
| CMRR (common‑mode rejection) | ≥100 dB |
| Isolation method | 500 VAC between digital circuits and ground |
The tightening torque is 1.95 kg‑cm (1.7 in‑lbs).
Response times of 2, 10, 20, 40, or 80 ms per channel can be set.
Connect the ground terminal to the system earth point to improve noise immunity.
The load cell can be connected up to 100 meters away.
