AELTA DVP-20PM Installation Manual

This instruction sheet only provides information on electrical specification, functions and wiring. For detailed information on programming and instructions, please refer to “DVP-PM Application Manual: Programming”. For more information about the optional peripherals, please see individual product instruction sheet or “DVP-PLC Application Manual: Special Modules”.

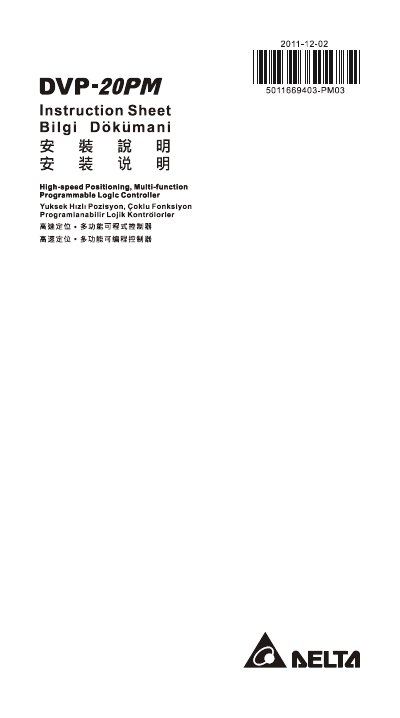

AELTA DVP-20PM Installation Manual - cover page
Brand
AELTA
Category
Automation control Equipment
Document type
Installation Guide
Language
English
Pages
19
File format
PDF
File size
1000 KB
Published
15 March, 2012
Updated
30 September, 2023
MD5 checksum
55003E7BE73212AB3CD38C1595BD4723

About this manual

This manual describes the physical dimensions, mounting options, and wiring procedures for the DVP-20PM open‑type PLC. It includes detailed diagrams for DIN‑rail and direct mounting, as well as guidance on terminal tightening torque and connector types.

Electrical specifications such as power supply range (100‑240 VAC), current output (500 mA @ DC24 V), insulation impedance (>5 MΩ), and environmental limits (0‑55 °C operation, –25‑70 °C storage) are listed, together with safety recommendations for grounding, emergency stop wiring, and protection circuits.

What's inside

  • Product Profile & Dimension
  • Electrical Specifications
  • Installation Methods
  • Wiring Guidelines
  • Power Supply
  • Safety Wiring
  • Input Point Wiring
  • Output Point Wiring
  • Battery Indicator

Specifications

Power consumption60 VA
DC24V current output500 mA
Weight696 g
Operating temperature0 °C to 55 °C
Storage temperature-25 °C to 70 °C
Insulation impedance>5 MΩ (500 VDC to ground)
Withstand voltage1 500 VAC (primary‑secondary)

Frequently asked questions

What size should the grounding wire be?

The grounding wire diameter must not be smaller than that of the L and N power terminals.

How do I mount the PLC on a DIN rail?

Pull down the retaining clip at the bottom, place the PLC onto the 35 mm DIN rail, and push the clip up to lock it.

What torque should be applied to the terminal screws?

Terminal screws should be tightened to 9.50 kg‑cm (8.25 in‑lb).
